Copper Bonded Earth Rods Earthing Rods Copper Rods

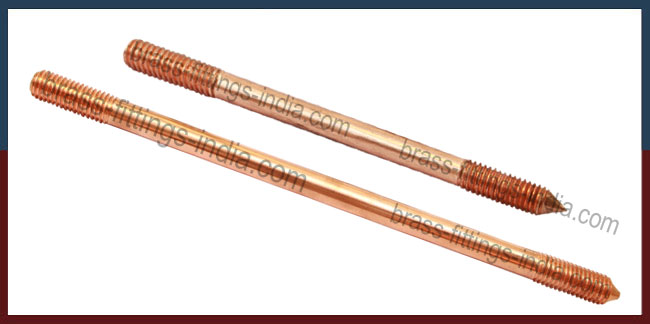

Copper Bonded Earth Rods Earthing Rods Copper Rods Earth Rods are made from high tensile low carbon Steel complying with requirements of BS 4360 Grade 43 A. Each rod is molecularly bonded by 99.99% pure, high conductivity Copper. To prevent oxidation of Copper bonding, each rod is treated with Benzol-Triozole derivatives. Threads on rods are formed by roll threading process, giving threads extra strength, eliminating risk of chipping the threads while driving the rods in the ground.
Rod Dimension (mm) | Diameter Of Threads | Actual Rod Diameter (mm) | Code No. |
9.5 x 1200 | Unthreaded | 9.5 | CER-9512 |
14.5 x 1200 | 9/16” | 12.5 | CER-1412 |
14.5 x 1500 | 9/16” | 12.5 | CER-1415 |
14.5 x 1800 | 9/16” | 12.5 | CER-1418 |
16.0 x 1200 | 5/8” | 14.2 | CER-1612 |
16.0 x 1500 | 5/8” | 14.2 | CER-1615 |
16.0 x 1800 | 5/8” | 14.2 | CER-1618 |
16.0 x 2400 | 5/8” | 14.2 | CER-1624 |
19.0 x 1200 | 5/8” | 17.2 | CER-1912 |
19.0 x 1500 | 3/4″ | 17.2 | CER-1915 |
19.0 x 1800 | 3/4″ | 17.2 | CER-1918 |
19.0 x 2400 | 3/4″ | 17.2 | CER-1924 |
25.0 x 2400 | Unthreaded | 25.4 | CER-2540 |
25.0 x 3000 | Unthreaded | 25.4 | CER-2530 |
Fittings | : | – |
Driving Head | : | Reusable high tensile Steel |
Coupling | : | Brass or Aluminum Bronze |
Driving Spike | : | High strength alloy Steel |
Internal Coupling | : | Phosphorous Bronze or high tensile Brass dowel |
